No23 Mk1,2 & 3 Grenades.

Please click on the picture to Enlarge.

New updates with Red Descriptions

Old Picture from Book.

How to throw a Mills bomb

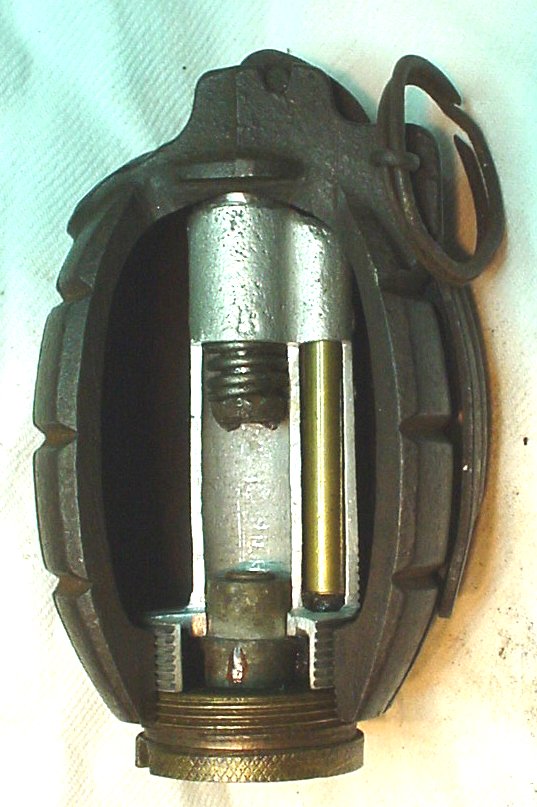

Early sectioned version.

Mk1 B

Mk 1 E

Posssible Elmbank

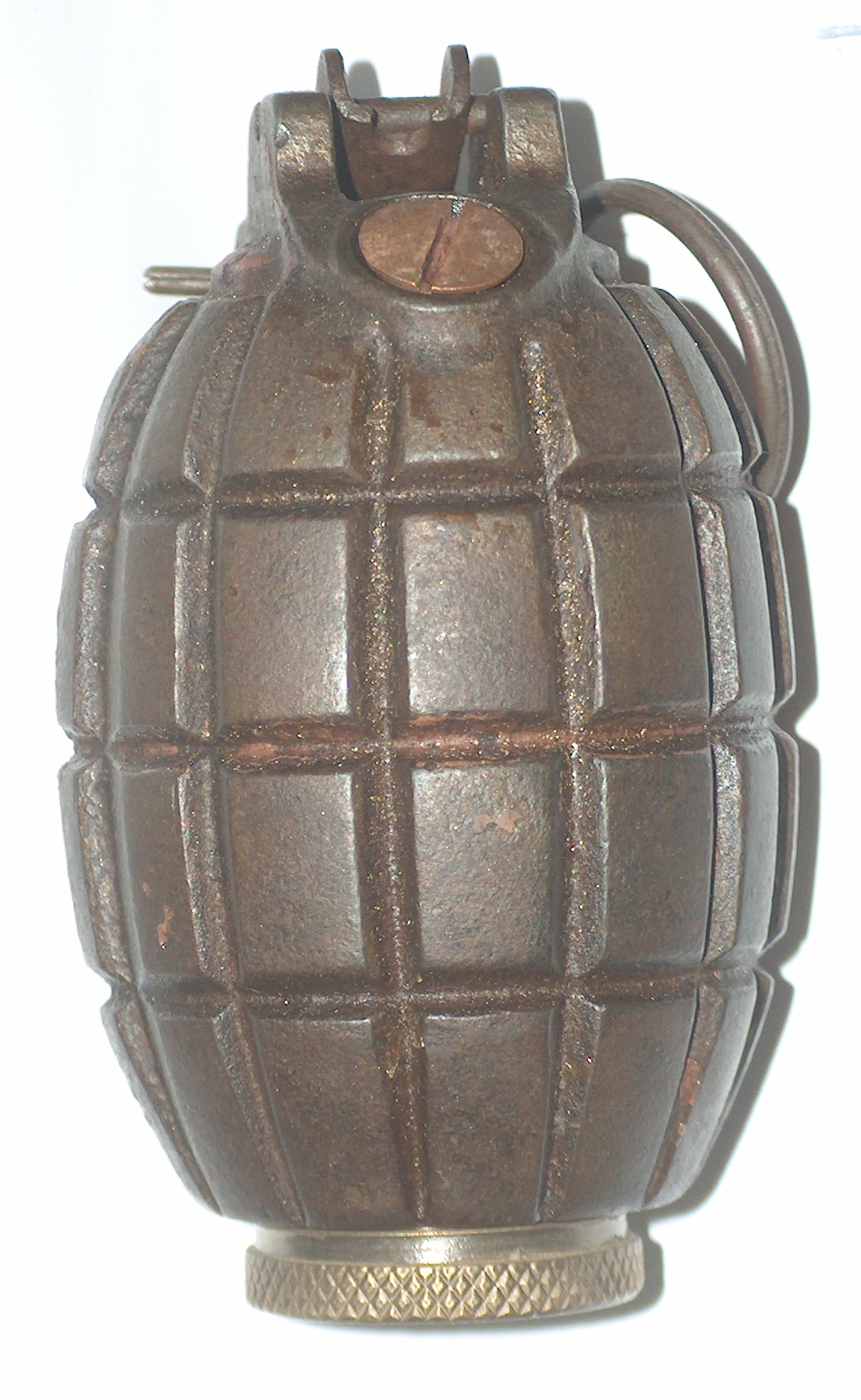

H&R Lt

Mk1 H.Hope, no threded hole for rod.

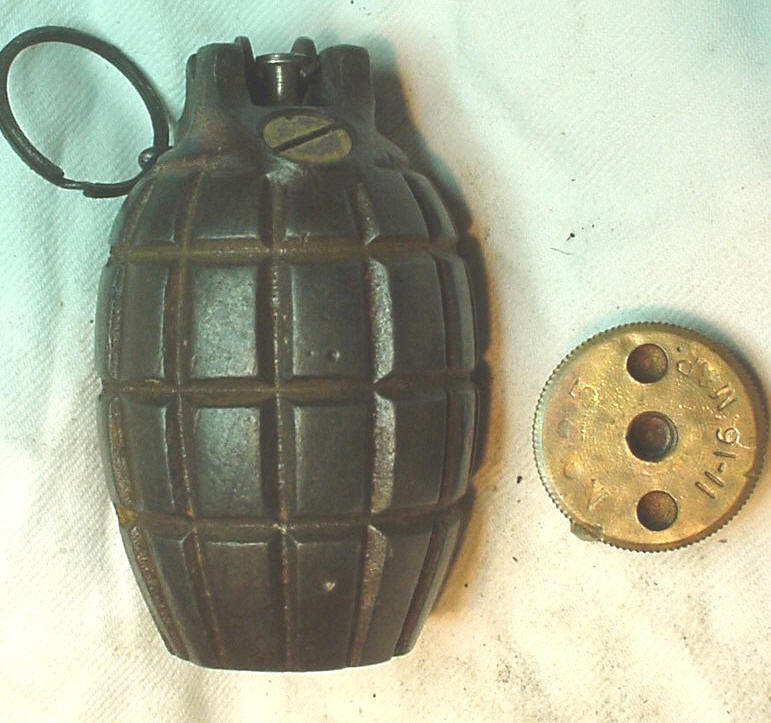

Mk1 M.P.

Mason & Porter ?

May & Padmore.?

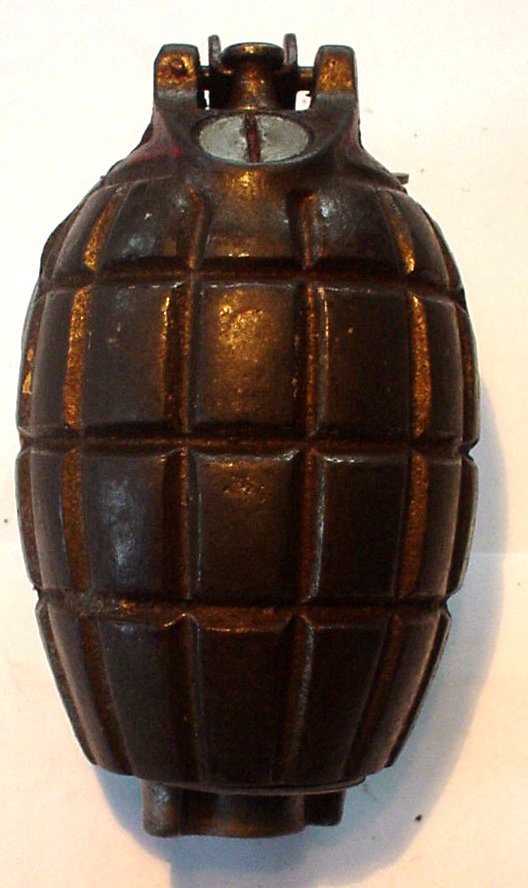

Mk2

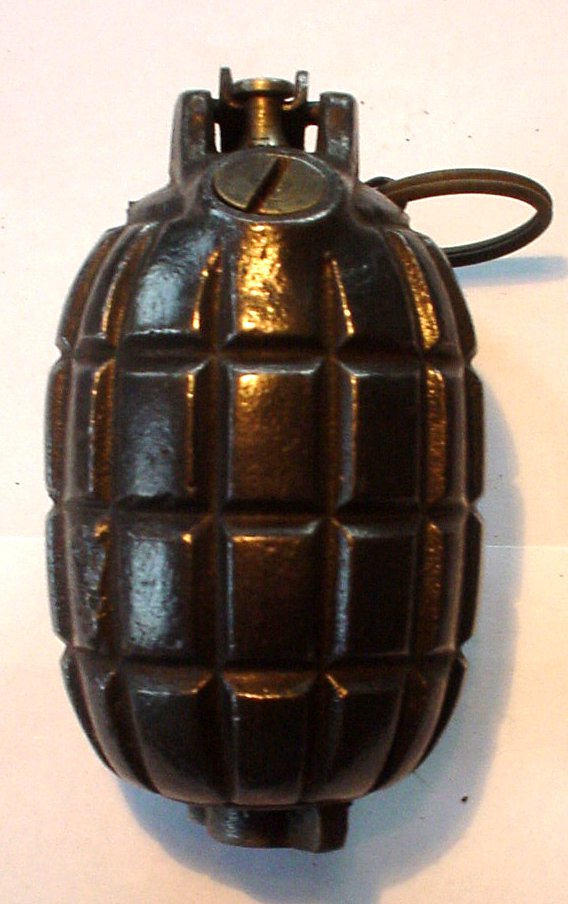

Mk2

Mk2

D & M.B. ?

Mk 2 F.L c

Fremo

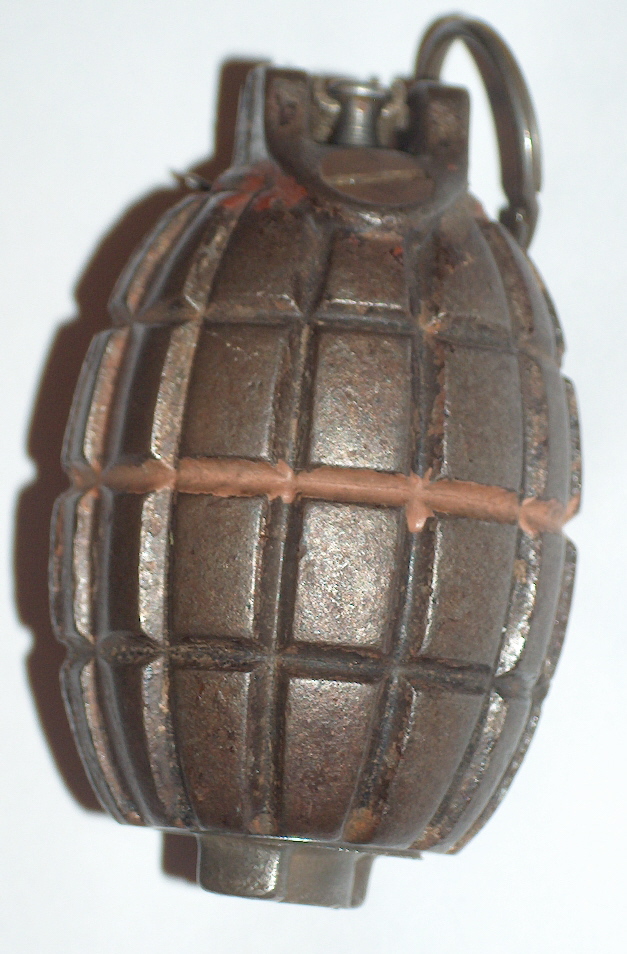

Mk2 M.M & Co

Mills Munitions

Mk3 A.B.S. Ltd

Mk3 Very Rare Ally Version X

Mk3 D

Mk3 D in diamond.

Davis Gas Stove Company Ltd

(Diamond Foundry)

Mk3 This is marked on the rear segments with E F either side of the Lever.

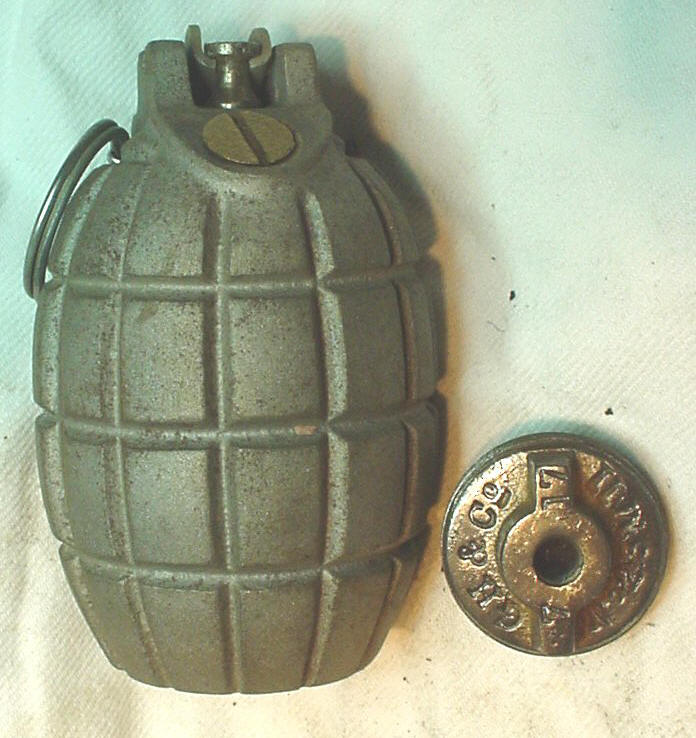

Mk3 G.H.

A ?

Mk3 F & S

Forrest and Sym, Manchester.

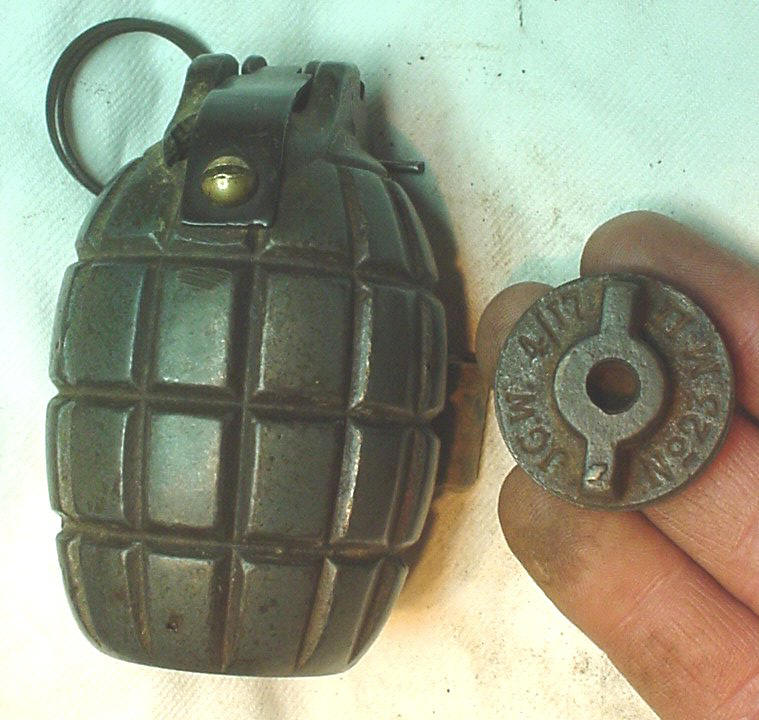

Mk3 Gibbons Spring Training Grenade.

Top View

Side View

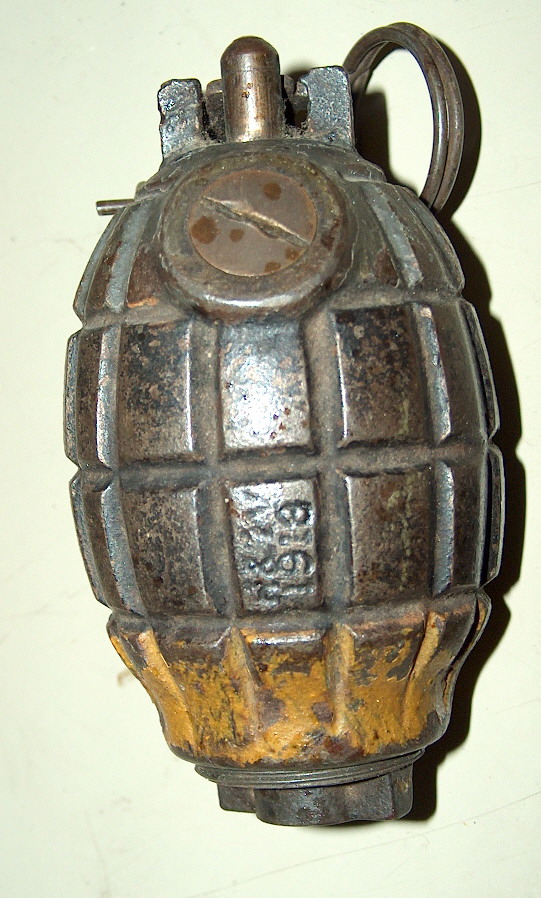

H & T.V 1918

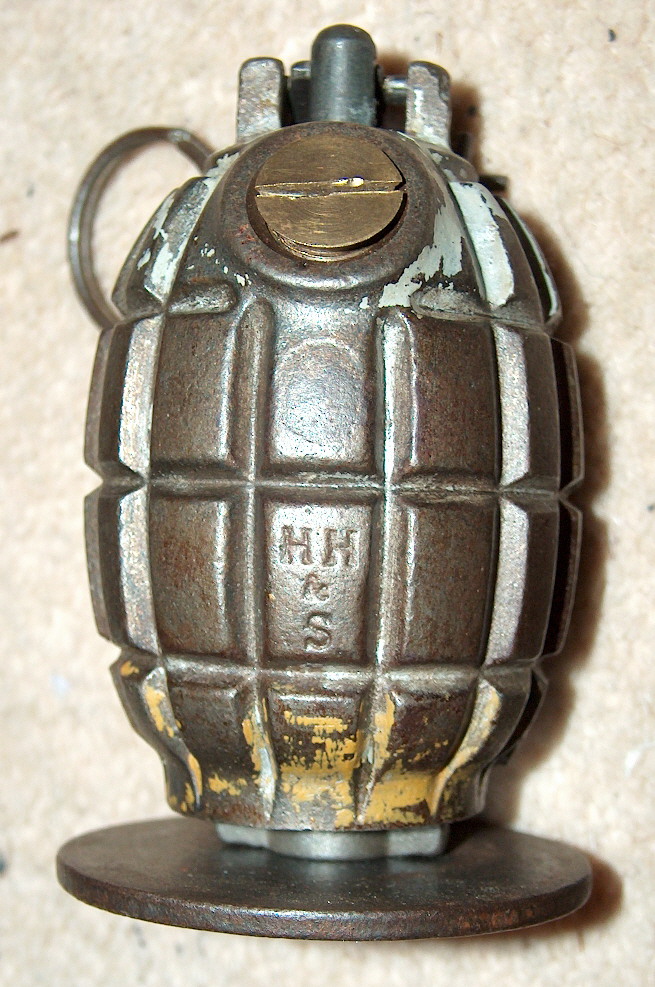

Mk3 H.H. & S. ?

Mk3 J.C.C.

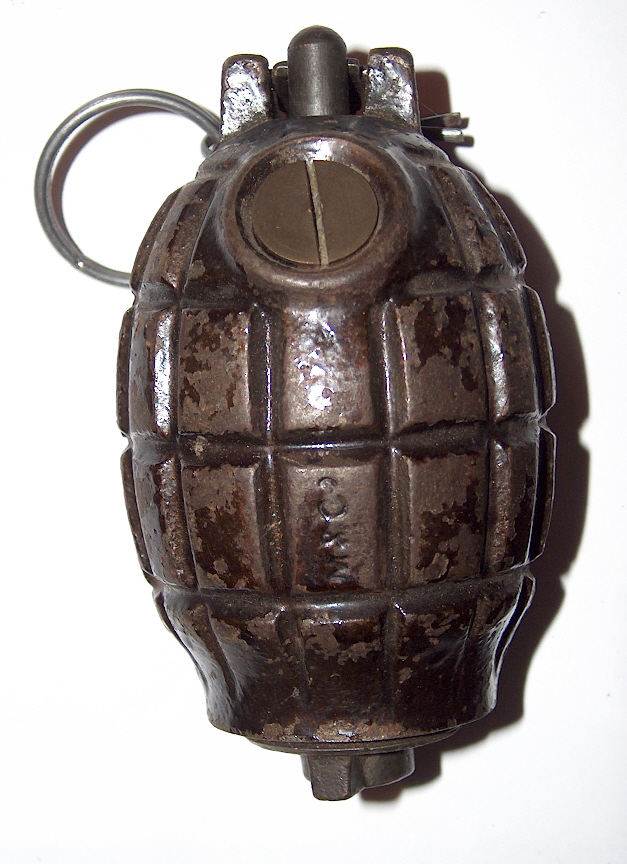

Mk3 M&Co M.



Morum & Co.

Mk3 M.G.Y.

Mk3 M.M.

Mills Munitions

M.S ?

Mk3 REVO.



Tipton Street. ?

Revo Electric Co Ltd.

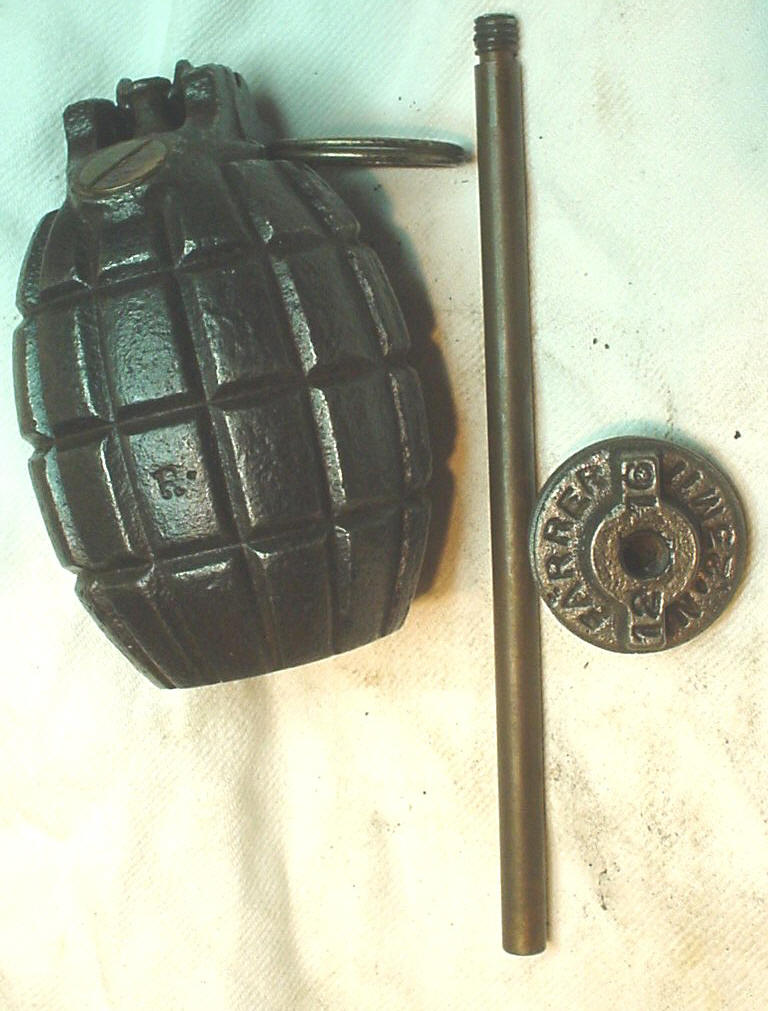

Mk3 R.

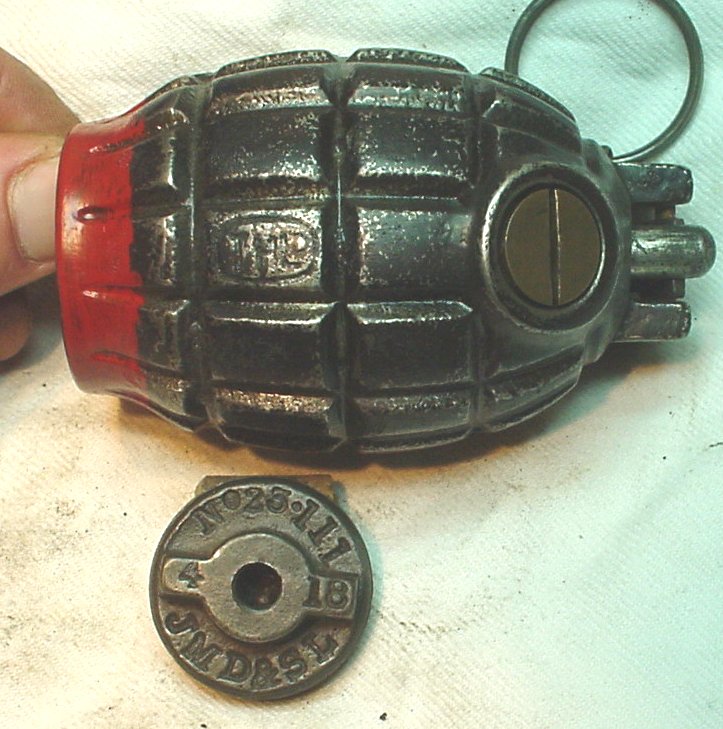

Mk3 T.H.Ltd



Thorpe Arch Ltd.

Mk3 W&C Ltd

VPL.

Vicory Patents Ltd

10, Devonshire Grove, Old Kent Road, London SE15.



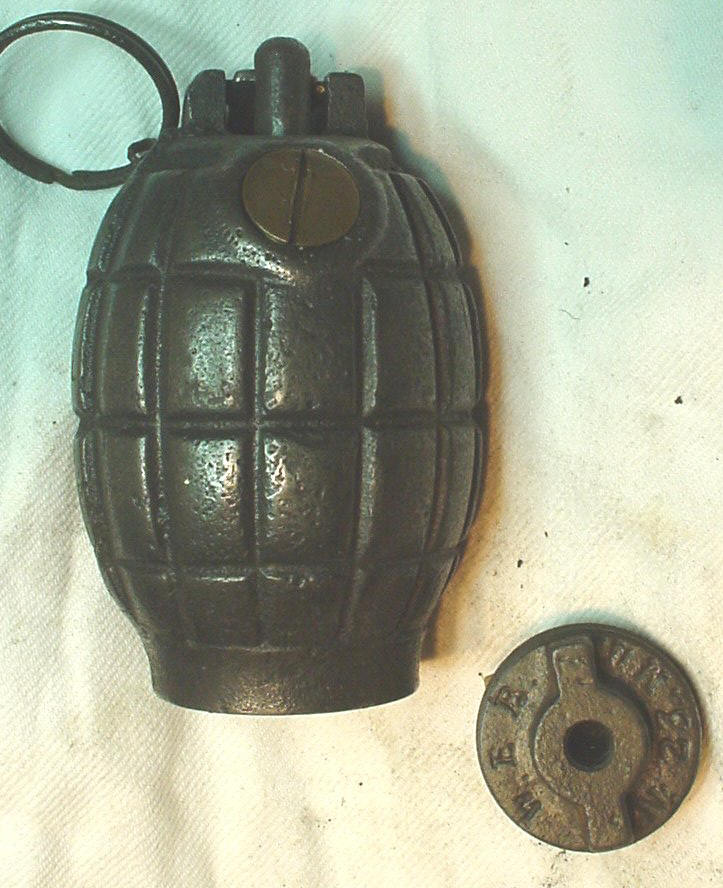

WEB

W.E.Blake.

London.

Mk3 Training Grenade for cup discharger X

Solid Ally Practice.

Selection of No23 Det Anvils and Copper coated striker spring.

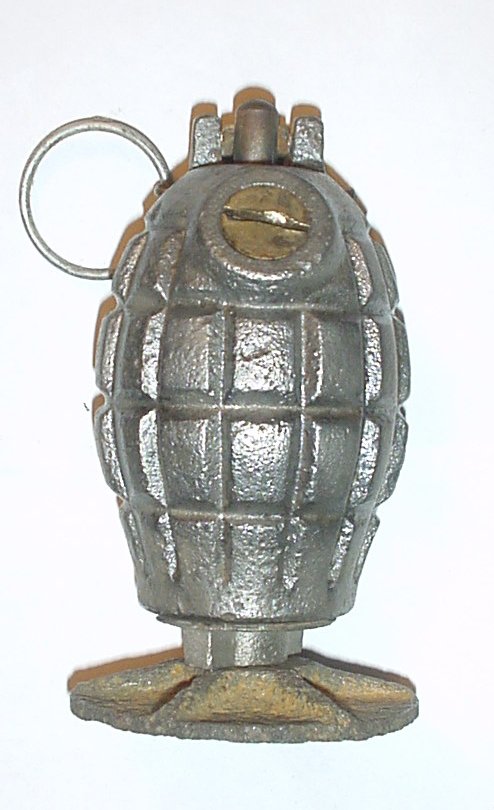

Russian Version No23 Mk3, with gas check
